Geadvanceerde functies
Knop voor uitbreidingsmodus (poorten 1–2, PoE-voeding en gegevensoverdracht tot 250 m) PoE automatisch herstel (poorten 1-4) Mac-adres automatisch leren en automatisch ouder worden IEEE 802.3x-stroomcontrole 802.1p /DSCP QoS IGMP-snooping
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Hoeveelheid Power over Ethernet (PoE) ports
0
Aantal Power over Ethernet plus (PoE +)-poorten
4
Totaal Power over Ethernet (PoE)-budget
66 W
Aantal Power over Ethernet (PoE ++)-poorten
1 (alleen ingang)
Long-Range PoE+
tot 250 m
PoE Auto Recovery
Het garandeert een stabiele werking van PoE-apparaten door de gevallen of niet-reagerende PD-apparaten automatisch opnieuw op te starten.
Gewicht en omvang
Breedte
158 mm
Diepte
101 mm
Hoogte
25 mm
Energie
Stroomtoevoer
PoE++ (Het product ondersteunt alleen PoE-voeding, geen AC- of DC-voeding)
Productkenmerken:

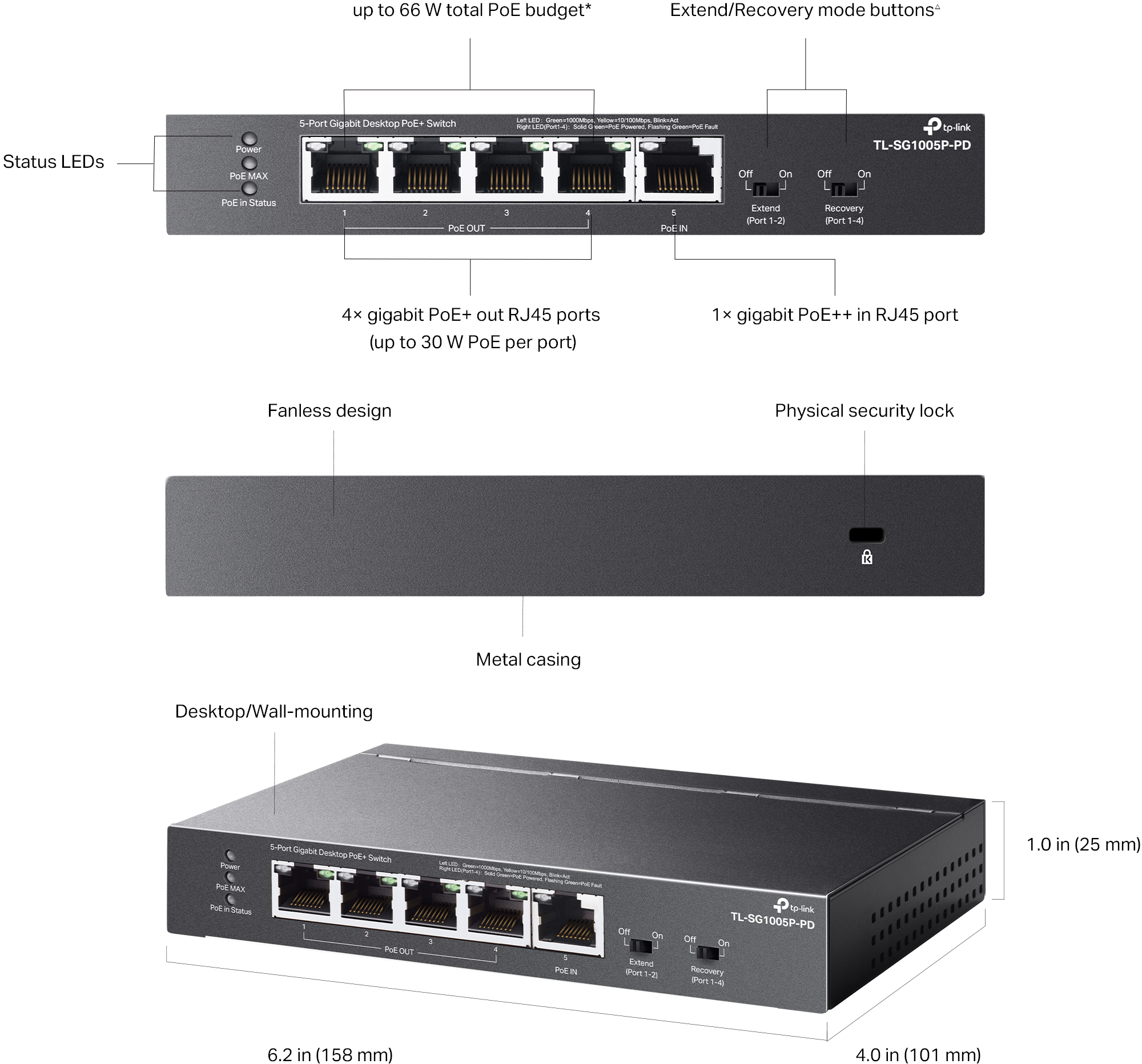

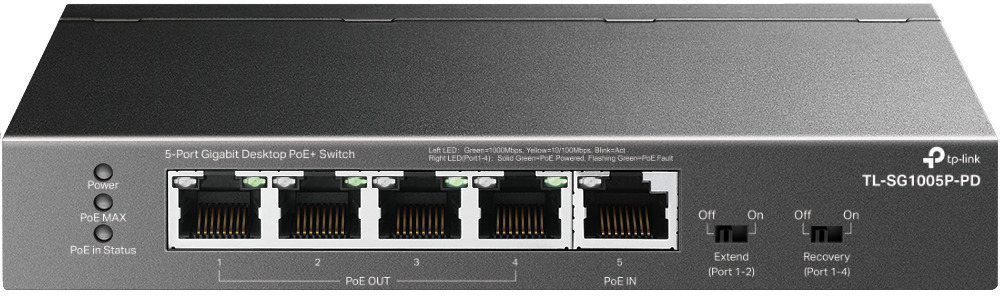

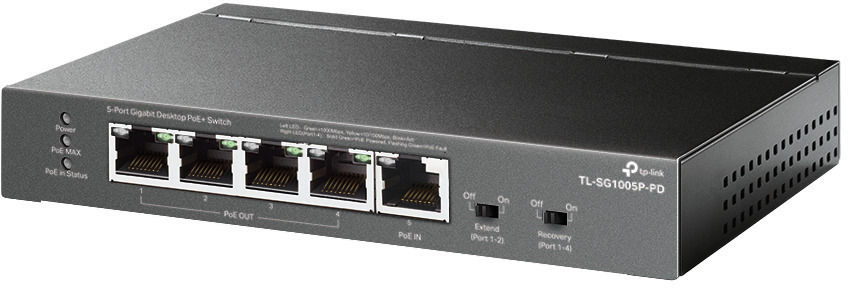

Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

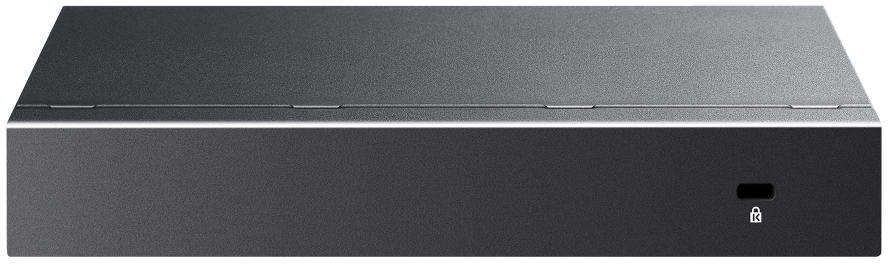

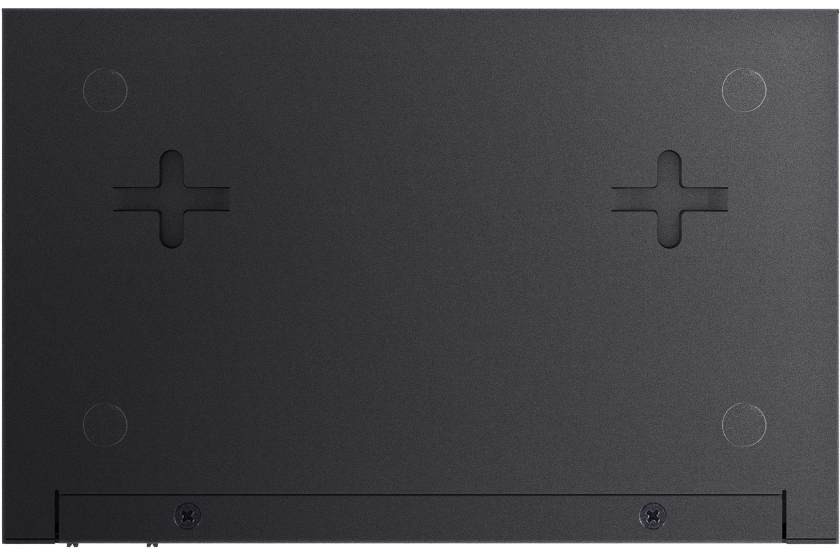

Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
